Correct resistance is essential when designing or replacing an electric furnace heating element. A coil with too little resistance can draw excessive current, while excessive resistance may prevent the furnace from reaching the required power. Wire material, diameter, length and operating temperature all need to be considered before a coil is manufactured. For a Kanthal heating coil, resistance calculations normally begin with the furnace voltage and required electrical power. This article works through that calculation in full, using a single worked example from start to finish.

Start With Voltage and Power

If the furnace voltage and desired power are known, the required resistance can be calculated using: R = V² / P Where R is resistance in ohms, V is applied voltage, and P is electrical power in watts. Suppose a single-phase furnace requires a 3,000 W element operating at 230 V. The calculation is R = 230² / 3,000 = 17.63 ?. This represents the approximate resistance needed at the operating condition to produce 3 kW at 230 V. This is only the first stage of the design, however.

Account for Resistance at Temperature

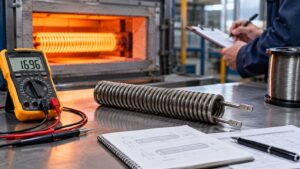

Resistance-heating alloys do not necessarily have exactly the same resistance when hot as they do at room temperature. For Kanthal® A-1, the published resistivity at 20°C is 1.45 ? mm²/m. Kanthal also provides a temperature factor, known as Ct, for calculating resistivity at elevated temperatures. At 1,000°C, the listed Ct value for Kanthal® A-1 is approximately 1.04. If 17.63 ? is required at the hot operating condition, an approximate cold resistance can be calculated as cold resistance = hot resistance / Ct, which gives 17.63 / 1.04 ? 16.96 ?. This distinction matters when checking a finished Kanthal coil with a resistance meter at room temperature. Kanthal heating coil

Calculate the Wire Cross-Section

Once the material and wire diameter have been selected, calculate the cross-sectional area of round wire using A = ?d² / 4, where A is cross-sectional area in mm² and d is wire diameter in mm. For a 1.5 mm wire, A = ? × 1.5² / 4 ? 1.767 mm². Wire diameter has a major influence on resistance: a thinner wire has a smaller cross-sectional area and therefore produces greater resistance per metre when the alloy remains unchanged.

Calculate Resistance Per Metre

Resistance per metre can be estimated using R/m = ? / A, where ? is the material resistivity. Using Kanthal® A-1 at room temperature, R/m = 1.45 / 1.767 ? 0.821 ?/m.

Find the Required Wire Length

If the target cold resistance is approximately 16.96 ? and the selected wire provides about 0.821 ?/m, wire length = required resistance / resistance per metre = 16.96 / 0.821 ? 20.7 metres. This simplified example would therefore require approximately 20.7 metres of 1.5 mm Kanthal® A-1 wire. This does not mean the design is automatically suitable for a real 3 kW furnace: the calculated wire must also be checked for surface loading and physical dimensions.

Do Not Ignore Surface Loading

Resistance alone cannot determine whether a heating element will have an acceptable service life. Kanthal defines element surface load as power divided by the surface area of the heating element: p = P / A. Higher surface loading generally causes the element to operate at a higher temperature relative to its surroundings, and permissible loading generally decreases as furnace temperature increases. This is why simply reducing wire diameter until the desired resistance is achieved can produce a poor furnace design.

Coil Geometry Still Needs Checking

Once conductor length is known, the wire still has to be formed into a spiral that fits the furnace, and that introduces its own dimensional checks: coil diameter, pitch and support method all interact with the calculation above. Those ratios and their manufacturability limits are covered in our supplier and element-design guidance; the point worth flagging here is that a correctly calculated wire length can still produce an unsuitable coil if the geometry isn't checked afterwards.

Verify the Finished Coil

Before installation, a completed heating coil should be checked against the design. Useful inspections include:

• Cold electrical resistance
• Wire diameter
• Coil outside diameter
• Stretched coil length
• Pitch between turns
• Terminal dimensions
• Surface condition

If several elements operate in the same furnace zone, resistance consistency between elements may also be important.

Conclusion

Calculating heating-coil resistance begins with a straightforward electrical equation, but a reliable furnace element requires several additional checks. Voltage and power establish the required resistance, while alloy resistivity and wire diameter determine the conductor length, and temperature correction, surface loading and coil geometry must then be considered before the design is approved. A correctly calculated heating coil is not simply a wire of the right resistance. It is an electrical, thermal and mechanical component whose dimensions must work together under the actual furnace operating conditions.
